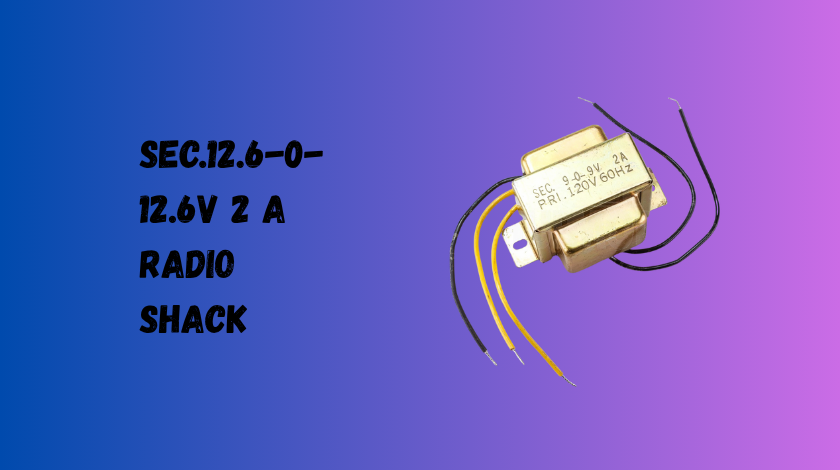

The RadioShack 12.6V-0-12.6V 2A transformer, often referenced by its catalog number 273-1512B, is a center-tapped transformer that has been a staple in electronics for hobbyists, repair technicians, and engineers. This versatile component, designed to deliver a secondary voltage of 12.6V-0-12.6V at a current rating of 2 amps, has found applications in a wide range of electronic projects, from audio amplifiers to power supplies for vintage equipment. In this article, we will delve into the technical specifications, historical significance, applications, and practical considerations of using this transformer, while also exploring its role in the legacy of RadioShack, a brand synonymous with electronics retail. By examining its design, functionality, and real-world use cases, we aim to provide a thorough understanding of this component and its relevance in modern electronics.
This 5000-word article is structured to cover the transformer’s specifications, its historical context within RadioShack’s product line, practical applications in electronics, safety considerations, and a detailed analysis of its design and performance. The conclusion will summarize key insights and reflect on the enduring legacy of such components in the electronics community.
Historical Context of RadioShack and Its Transformers
The Rise of RadioShack
RadioShack, founded in 1921 by Theodore and Milton Deutschmann, began as a small retail and mail-order operation in Boston, catering to the burgeoning field of amateur radio. The company’s name was inspired by the term “radio shack,” a colloquial term for the small wooden structures that housed radio equipment on ships. Over the decades, RadioShack grew into a household name, offering a wide range of electronics, components, and accessories. By the late 20th century, it had become a go-to destination for hobbyists and professionals seeking parts like transformers, resistors, capacitors, and integrated circuits.
The 12.6V-0-12.6V 2A transformer (catalog number 273-1512B) is one of many components that RadioShack offered to support DIY electronics projects. Transformers, in particular, were a cornerstone of their inventory, as they were essential for powering countless electronic devices before the widespread adoption of switching power supplies.
Evolution of Transformers in Electronics
Transformers are fundamental components in electronics, used to step up or step down voltage levels or to provide electrical isolation between circuits. The RadioShack 12.6V-0-12.6V transformer is a classic example of a center-tapped transformer, designed to provide dual 12.6V outputs relative to a common center tap, effectively allowing for both 12.6V and 25.2V (across the full secondary winding) outputs. This configuration is particularly useful in applications requiring symmetrical power supplies, such as audio amplifiers or tube-based circuits.
In the mid-20th century, transformers like the 273-1512B were critical for powering vacuum tube equipment, including radios, amplifiers, and early computers. As solid-state electronics became more prevalent, these transformers remained relevant for applications requiring stable, low-voltage AC or DC power after rectification.
Technical Specifications of the RadioShack 12.6V-0-12.6V 2A Transformer
Voltage and Current Ratings
The RadioShack 12.6V-0-12.6V 2A transformer is designed with the following key specifications:
-
Primary Voltage: 120V AC at 60Hz, suitable for standard North American household power.
-
Secondary Voltage: 12.6V-0-12.6V, meaning it has a center-tapped secondary winding that provides 12.6V AC from each end to the center tap or 25.2V AC across the full secondary winding.
-
Current Rating: 2 amps, indicating the maximum current the transformer can deliver without overheating or degrading performance.
-
Power Rating: Approximately 50.4 VA (volt-amperes), calculated as 25.2V × 2A, which represents the transformer’s capacity to handle power.
These specifications make the transformer suitable for medium-power applications, such as powering audio amplifiers, small power supplies, or filament circuits in vacuum tube devices.
Physical Characteristics
The transformer is typically housed in a metal or insulated enclosure, with mounting holes for secure installation in electronic chassis. It features multiple leads for the primary and secondary windings, with the center tap clearly marked for easy identification. The compact design ensures it can fit into a variety of project enclosures, a hallmark of RadioShack’s component design philosophy, which prioritized accessibility for hobbyists.
Center-Tapped Design
The center-tapped configuration is a key feature of this transformer. The secondary winding is split into two equal halves, with the center tap serving as a common reference point. This allows for flexible voltage options:
-
12.6V AC: By connecting to one end of the secondary and the center tap.
-
25.2V AC: By connecting across both ends of the secondary winding.
-
Dual ±12.6V: When used with a rectifier circuit, the center tap can serve as ground, providing positive and negative 12.6V DC outputs after rectification and filtering.
This versatility makes the transformer ideal for applications requiring symmetrical power supplies, such as operational amplifier circuits or push-pull audio amplifiers.
Applications of the 12.6V-0-12.6V 2A Transformer
Audio Amplifiers
One of the most common applications of the 12.6V-0-12.6V transformer is in audio amplifiers, particularly those using vacuum tubes or operational amplifiers. The center-tapped design allows for the creation of a bipolar power supply, which is essential for amplifiers that require both positive and negative voltage rails. For example:
-
Tube Amplifiers: The 12.6V output is often used to power the filament (heater) circuits of vacuum tubes, which typically require 6.3V or 12.6V at moderate currents. The 2A rating ensures sufficient current for multiple tubes.
-
Solid-State Amplifiers: After rectification, the transformer can provide ±12V DC or ±15V DC (depending on rectifier losses and regulation) for operational amplifiers in audio circuits.
A typical circuit might involve a bridge rectifier, filter capacitors, and voltage regulators to convert the AC output to stable DC voltages for powering an amplifier.
Power Supplies for DIY Projects
The transformer is also widely used in DIY power supply projects. By combining it with a rectifier circuit (such as a full-wave bridge rectifier) and smoothing capacitors, hobbyists can create a reliable DC power supply. For example:
-
Single Voltage Supply: Using one 12.6V output and the center tap, a rectified and filtered output of approximately 15-17V DC can be achieved (before regulation).
-
Dual Voltage Supply: Using the full secondary winding with the center tap as ground, a dual ±12V DC supply can be created, ideal for analog circuits.
Such power supplies are commonly used in hobbyist projects, including radio receivers, test equipment, and custom electronics.
Vintage Electronics Restoration
The 12.6V-0-12.6V transformer is a popular choice for restoring vintage electronics, such as tube radios, televisions, and hi-fi systems. Many of these devices originally used transformers with similar specifications, and the RadioShack 273-1512B serves as a drop-in replacement. Its 2A current rating ensures compatibility with equipment requiring moderate power, while the center-tapped design supports the symmetrical voltage requirements of older circuits.
Battery Chargers and RC Applications
RadioShack’s catalog also lists several battery chargers and accessories for remote-controlled (RC) vehicles, some of which use transformers with similar specifications. The 12.6V-0-12.6V transformer can be used in charging circuits for NiCd or NiMH battery packs, particularly for RC cars or walkie-talkies, as seen in products like the RadioShack 23-249 (18VDC, 50mA charger) or 23-232 (12V DC R/C battery charger). While these chargers may have different voltage ratings, the transformer’s ability to provide stable AC voltage makes it adaptable for such applications with appropriate rectification and regulation.
Design Considerations and Circuit Integration
Transformer Efficiency and Losses
Transformers are not 100% efficient, and the RadioShack 12.6V-0-12.6V 2A transformer is no exception. Typical losses include:
-
Copper Losses: Caused by the resistance of the transformer’s windings, leading to heat generation.
-
Core Losses: Resulting from hysteresis and eddy currents in the transformer’s magnetic core.
-
Leakage Flux: Magnetic flux that does not couple between the primary and secondary windings, reducing efficiency.
For a transformer rated at 50.4 VA, the actual output power after losses may be slightly lower, typically around 80-90% of the rated value. Designers must account for these losses when selecting components for a circuit.
Rectification and Voltage Regulation
To convert the transformer’s AC output to DC, a rectifier circuit is required. Common configurations include:
-
Full-Wave Bridge Rectifier: Using four diodes to rectify the full secondary voltage (25.2V AC) or one 12.6V output.
-
Center-Tapped Full-Wave Rectifier: Using two diodes and the center tap to produce ±12.6V DC.
After rectification, the DC voltage will be higher than the AC RMS voltage due to the peak voltage (approximately 1.414 × RMS voltage). For example, 12.6V AC becomes approximately 17.8V DC before filtering and regulation. Smoothing capacitors (e.g., 1000µF or higher) are used to reduce ripple, and voltage regulators (e.g., 7812/7912 for ±12V) ensure stable output voltages.
Safety Considerations
When working with the RadioShack transformer, safety is paramount:
-
Primary Voltage: The 120V AC primary winding is connected to mains power, posing a risk of electric shock. Always ensure proper insulation and grounding.
-
Overloading: Exceeding the 2A current rating can cause overheating, potentially damaging the transformer or causing a fire hazard.
-
Mounting and Enclosure: The transformer should be securely mounted in a non-conductive enclosure to prevent accidental contact with live wires.
-
Fusing: A fuse on the primary side (e.g., 0.5A slow-blow) is recommended to protect against short circuits or overloads.
Practical Example: Building a Dual Power Supply
To illustrate the transformer’s application, let’s consider a practical example of building a dual ±12V DC power supply for an audio amplifier.
Components Needed
-
RadioShack 12.6V-0-12.6V 2A transformer (273-1512B)
-
Two diodes (e.g., 1N4007) for center-tapped rectification
-
Two 2200µF electrolytic capacitors (25V rating)
-
7812 (+12V) and 7912 (-12V) voltage regulators
-
Heat sinks for the regulators
-
0.1µF ceramic capacitors for noise filtering
-
PCB or perforated board
-
Fuse holder and 0.5A slow-blow fuse
-
Enclosure and connectors
Circuit Design
-
Primary Connection: Connect the transformer’s primary winding to 120V AC mains through a fuse and power switch.
-
Secondary Connection: Connect the secondary windings to a center-tapped rectifier circuit. The two outer leads provide 12.6V AC each, with the center tap as ground.
-
Rectification: Use two diodes to rectify the AC voltages into pulsating DC (±17.8V DC peak).
-
Filtering: Connect 2200µF capacitors across each rectified output to smooth the DC voltage.
-
Regulation: Feed the filtered DC into 7812 and 7912 regulators to produce stable ±12V DC outputs. Add 0.1µF capacitors at the regulator inputs and outputs to reduce noise.
-
Output: Connect the regulated outputs to terminal blocks for easy access.
Performance
This power supply can deliver up to 2A at ±12V DC, suitable for powering small audio amplifiers or other analog circuits. The transformer’s 2A rating ensures sufficient current for most hobbyist applications, while the center-tapped design provides the necessary symmetry for bipolar circuits.
RadioShack’s Legacy and the Transformer’s Modern Relevance
The Decline of RadioShack
RadioShack faced significant challenges in the 21st century, including competition from online retailers and changing consumer preferences. The company filed for bankruptcy in 2015 and again in 2017, leading to the closure of many stores. However, its legacy lives on through its components, which remain in use by hobbyists and collectors. The 12.6V-0-12.6V transformer is a testament to RadioShack’s commitment to providing accessible, high-quality components for electronics enthusiasts.
Modern Alternatives
While the RadioShack transformer is no longer manufactured, modern equivalents are available from manufacturers like Hammond, Triad Magnetics, and others. These transformers offer similar specifications but may include improvements such as higher efficiency or better insulation. However, the RadioShack 273-1512B remains a favorite among vintage electronics enthusiasts due to its reliability and compatibility with older equipment.
Availability on Secondary Markets
The transformer is still available on secondary markets like eBay, often listed as “used” or “untested.” Prices vary depending on condition, with some units selling for as little as $10-$20. Buyers should verify the transformer’s condition, as untested units may have issues like shorted windings or insulation degradation.
Challenges and Limitations
Obsolescence
As electronics have shifted toward switching power supplies, linear transformers like the 12.6V-0-12.6V model have become less common in new designs. Switching power supplies are more efficient and compact, making them preferred for modern applications. However, linear transformers remain valuable for applications requiring low noise, such as audio equipment.
Weight and Size
The transformer’s laminated iron core makes it heavier and bulkier than modern alternatives, which can be a drawback in portable or space-constrained projects.
Heat Generation
At full load (2A), the transformer generates heat due to copper and core losses. Adequate ventilation and heat sinking are necessary to ensure long-term reliability.
Conclusion
The RadioShack 12.6V-0-12.6V 2A transformer (273-1512B) is a versatile and historically significant component that embodies the spirit of DIY electronics. Its center-tapped design, robust current rating, and compatibility with a wide range of applications—from audio amplifiers to vintage radio restoration—make it a valuable tool for hobbyists and professionals alike. While RadioShack’s retail presence has diminished, the legacy of its components endures in workshops and labs worldwide.
This article has explored the transformer’s technical specifications, applications, and practical considerations, providing a comprehensive guide for anyone looking to use or understand this component. Whether you’re building a power supply, restoring a vintage radio, or experimenting with audio circuits, the 12.6V-0-12.6V transformer offers reliability and flexibility. Its enduring popularity on secondary markets and among electronics enthusiasts underscores its importance in the history of hobbyist electronics.
As we reflect on the role of such components, it’s clear that they represent more than just hardware—they symbolize a culture of innovation, experimentation, and learning that RadioShack championed for decades. For those continuing to tinker and create, the 12.6V-0-12.6V transformer remains a bridge between the past and present of electronics.
