Comprehensive Guide to the crank sensor location on a1998 chevy 4.3

The crankshaft position sensor, commonly referred to as the crank sensor, is a critical component in the internal combustion engine of a 1998 Chevrolet vehicle equipped with a 4.3-liter V6 engine. This sensor plays an essential role in ensuring the engine operates smoothly by monitoring the position or rotational speed of the crankshaft. This information is relayed to the engine control module (ECM), which uses it to control ignition timing, fuel injection, and other engine parameters. For owners of a 1998 Chevy with a 4.3L engine, understanding the crank sensor’s location, function, and maintenance is vital for diagnosing issues, performing repairs, and maintaining optimal vehicle performance.

This article provides an in-depth exploration of the crank sensor in the 1998 Chevy 4.3, focusing on its location, purpose, symptoms of failure, replacement procedures, and related considerations. Whether you’re a DIY mechanic or a vehicle owner seeking to understand your Chevy better, this guide offers detailed insights to assist you.

The Role of the Crankshaft Position Sensor

The crankshaft position sensor is a pivotal component in modern internal combustion engines. In the context of the 1998 Chevy 4.3, a Vortec V6 engine commonly found in models like the Chevrolet S10, Blazer, Silverado, or Astro, the crank sensor serves the following key functions:

1. Monitoring Crankshaft Position: The crank sensor detects the position of the crankshaft as it rotates, providing real-time data to the ECM. This allows the ECM to determine the precise timing for spark plug firing and fuel injection.

2. Engine Timing and Synchronization: The sensor ensures that the engine’s pistons and valves operate in sync, preventing misfires and ensuring efficient combustion.

3. Engine Speed Detection: By tracking the crankshaft’s rotational speed, the sensor helps the ECM adjust engine parameters for optimal performance under varying conditions, such as acceleration or idling.

4. Diagnostics and Misfire Detection: The crank sensor aids in identifying engine misfires or irregularities, which can trigger diagnostic trouble codes (DTCs) like P0335 (Crankshaft Position Sensor “A” Circuit Malfunction).

Without a functioning crank sensor, the engine may fail to start, misfire, stall, or exhibit poor performance, making it a critical component for vehicle reliability.

Crank Sensor Location in a 1998 Chevy 4.3

Locating the crankshaft position sensor in a 1998 Chevy 4.3L V6 engine is essential for inspection, testing, or replacement. The 4.3L Vortec engine, widely used in General Motors vehicles during the late 1990s, has a specific placement for the crank sensor that can be challenging to access due to its positioning.

Exact Location

In the 1998 Chevy 4.3, the crankshaft position sensor is located on the passenger side of the engine block, near the rear of the engine, close to the transmission bell housing. Specifically:

• Position: The sensor is mounted on the engine block, just above the oil pan and near the crankshaft pulley or harmonic balancer.

• Orientation: It is typically positioned at a slight angle, facing the crankshaft, and secured with one or two bolts.

• Accessibility: The sensor is partially obscured by other engine components, such as the starter motor, exhaust components, or transmission, making access somewhat difficult without proper tools or a vehicle lift.

To locate the crank sensor:

1. Identify the Transmission Bell Housing: The bell housing connects the engine to the transmission. The crank sensor is positioned near this junction.

2. Look Near the Starter Motor: The sensor is often close to the starter motor on the passenger side.

3. Check Above the Oil Pan: The sensor is mounted just above the oil pan rail, near the rear of the engine block.

Visual Identification

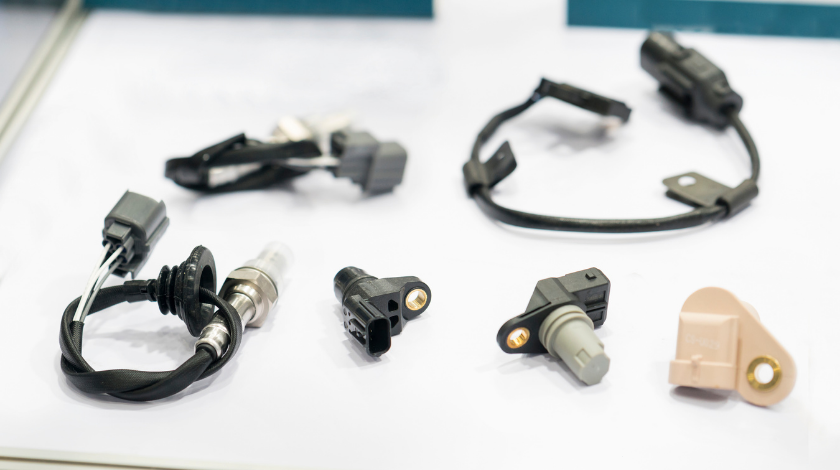

The crank sensor in the 1998 Chevy 4.3 is a small, cylindrical component with an electrical connector attached. It typically has a single or dual-pin connector and is made of plastic and metal. The sensor is inserted into the engine block and secured with a bolt, with a wiring harness extending from it to connect to the vehicle’s electrical system.

Accessibility Challenges

Accessing the crank sensor can be challenging due to:

• Tight Space: The sensor’s location near the transmission and other components leaves limited room for maneuvering tools.

• Vehicle Height: On vehicles like the Chevy Blazer or S10, ground clearance may require a lift or jack stands for easier access.

• Wiring Harness: The sensor’s electrical connector may be tucked behind other components, requiring careful disconnection.

For easier access, mechanics often recommend approaching the sensor from underneath the vehicle, using a creeper or working on a lift.

Symptoms of a Failing Crank Sensor

A faulty crankshaft position sensor can cause a range of engine performance issues. Recognizing these symptoms early can prevent more severe problems, such as complete engine failure or costly repairs. Common signs of a failing crank sensor in a 1998 Chevy 4.3 include:

1. Engine Misfires: The ECM relies on the crank sensor to time ignition correctly. A faulty sensor may cause sporadic misfires, leading to rough idling or hesitation during acceleration.

2. Difficulty Starting or No-Start Condition: If the crank sensor fails to send accurate data to the ECM, the engine may crank but not start, or it may start intermittently.

3. Stalling: The engine may stall unexpectedly, especially at idle or low speeds, due to incorrect timing signals.

4. Reduced Fuel Efficiency: A malfunctioning crank sensor can disrupt fuel injection timing, leading to poor fuel economy.

5. Check Engine Light (CEL): A failing crank sensor often triggers diagnostic trouble codes, such as P0335 or P0336 (Crankshaft Position Sensor “A” Circuit Range/Performance), which will illuminate the CEL.

6. Vibration or Rough Running: The engine may run unevenly, with noticeable vibrations, due to improper ignition timing.

If you experience any of these symptoms, it’s advisable to test the crank sensor or have it inspected by a professional mechanic.

Diagnosing a Faulty Crank Sensor

Diagnosing a crankshaft position sensor issue involves a combination of visual inspection, electrical testing, and diagnostic tools. Here’s a step-by-step guide for diagnosing the crank sensor in a 1998 Chevy 4.3:

1. Scan for Diagnostic Trouble Codes

• Tool Required: OBD-II scanner

• Connect an OBD-II scanner to the vehicle’s diagnostic port (located under the dashboard).

• Retrieve any stored trouble codes. Codes like P0335 or P0336 directly indicate crank sensor issues, while related codes (e.g., P0300 for random misfire) may suggest secondary effects.

2. Visual Inspection

• Check the Sensor and Wiring: Inspect the crank sensor for physical damage, such as cracks or corrosion. Ensure the wiring harness and connector are intact and free of oil or debris.

• Look for Loose Connections: A loose or disconnected wiring harness can mimic sensor failure.

3. Electrical Testing

• Tool Required: Digital multimeter

Test Resistance: Disconnect the crank sensor’s electrical connector and measure its resistance using a multimeter. Compare the reading to the manufacturer’s specifications (typically 500–1000 ohms for a 1998 Chevy 4.3).

4. Signal Testing

• Tool Required: Oscilloscope or scan tool with live data
• Use an oscilloscope to observe the crank sensor’s signal output while the engine is cranking. A healthy sensor produces a consistent, square-wave signal. Irregular or absent signals indicate a faulty sensor.
• Alternatively, a scan tool with live data can monitor crankshaft position sensor readings to confirm functionality.

5. Compare with Other Sensors

• If the vehicle has a camshaft position sensor, cross-reference its data with the crank sensor’s output. Discrepancies may indicate a crank sensor issue, as the two sensors work together to ensure proper engine timing.

If diagnostic tests confirm a faulty crank sensor, replacement is often the most effective solution.

Step-by-Step Guide to Replacing the Crank Sensor in a 1998 Chevy 4.3

Replacing the crankshaft position sensor in a 1998 Chevy 4.3 is a manageable task for a DIY mechanic with basic tools and mechanical knowledge. Below is a detailed guide to the replacement process.

Tools and Materials Needed

• Replacement crankshaft position sensor (OEM or high-quality aftermarket part)
• Socket wrench set (10mm or 13mm for sensor bolt)
• Torque wrench
• Flathead and Phillips screwdrivers
• Jack and jack stands or a vehicle lift
• Creeper (optional, for under-vehicle access)
• Penetrating oil (e.g., WD-40) for rusted bolts
• Clean rags and degreaser
• Safety gloves and glasses

Replacement Procedure

1. Prepare the Vehicle:
   • Park the vehicle on a flat surface and engage the parking brake.
   • Disconnect the negative battery cable to prevent electrical shorts.
   • If necessary, jack up the vehicle and secure it with jack stands for under-vehicle access.
2. Locate the Crank Sensor:
   • Refer to the earlier section on crank sensor location. Find the sensor on the passenger side of the engine block, near the transmission bell housing and above the oil pan.
3. Remove Obstructing Components (if needed):
   • In some cases, the starter motor or exhaust components may obstruct access. Remove the starter motor by disconnecting its wiring and removing its mounting bolts (typically two or three bolts).
   • Use caution to avoid damaging nearby components.
4. Disconnect the Sensor:
   • Locate the crank sensor’s electrical connector and carefully disconnect it by pressing the release tab and pulling it free.
   • Inspect the connector for damage or corrosion.
5. Remove the Old Sensor:
   • Use a socket wrench to remove the bolt(s) securing the crank sensor to the engine block. A 10mm or 13mm socket is typically required.
   • If the bolt is rusted, apply penetrating oil and wait a few minutes before attempting removal.
   • Gently pull the sensor out of its mounting hole. It may require slight wiggling to dislodge.
6. Clean the Mounting Area:
   • Use a clean rag and degreaser to clean the sensor mounting area on the engine block. Remove any dirt, oil, or debris to ensure a proper seal for the new sensor.
7. Install the New Sensor:
   • Insert the new crankshaft position sensor into the mounting hole, ensuring it is properly aligned.
   • Secure the sensor with the mounting bolt(s) and torque to the manufacturer’s specifications (typically 15–20 ft-lbs for the 1998 Chevy 4.3).
   • Reconnect the electrical connector, ensuring a firm connection.
8. Reinstall Removed Components:
   • If the starter motor or other components were removed, reinstall them and tighten all bolts securely.
   • Double-check all connections and fasteners.
9. Reconnect the Battery:
   • Reconnect the negative battery cable and tighten the terminal.
10. Test the Vehicle:
    • Start the engine and verify that it runs smoothly without misfires or stalling.
    • Use an OBD-II scanner to clear any stored trouble codes and confirm no new codes appear.
    • Take the vehicle for a short test drive to ensure proper operation.

Tips for Success

• Use OEM or High-Quality Parts: A low-quality crank sensor may fail prematurely or provide inaccurate readings.
• Check Sensor Alignment: Improper alignment during installation can lead to incorrect readings or sensor damage.
• Inspect Wiring: Ensure the wiring harness is free of damage or wear to avoid future issues.
• Torque Properly: Over-tightening the mounting bolt can damage the sensor or engine block.

Common Issues and Troubleshooting After Replacement

After replacing the crank sensor, some issues may persist or arise. Here are common problems and their solutions:

1. Engine Still Won’t Start:
   • Cause: Faulty replacement sensor, incorrect installation, or unrelated issues (e.g., fuel pump or ignition coil failure).
   • Solution: Re-check the sensor’s installation and connections. Test the new sensor with a multimeter or oscilloscope. Diagnose other potential issues using an OBD-II scanner.
2. Check Engine Light Remains On:
   • Cause: Residual trouble codes or an underlying issue not addressed by the sensor replacement.
   • Solution: Clear codes with an OBD-II scanner and monitor for new codes. Inspect related components like the camshaft position sensor or ECM.
3. Intermittent Misfires or Stalling:
   • Cause: Loose electrical connections, damaged wiring, or improper sensor alignment.
   • Solution: Verify the sensor’s connector is secure and inspect the wiring harness for damage. Ensure the sensor is properly seated and aligned.
4. Poor Performance After Replacement:
   • Cause: Low-quality replacement sensor or incorrect part compatibility.
   • Solution: Confirm the replacement sensor matches the OEM specifications for the 1998 Chevy 4.3. Consider using a GM OEM part for reliability.

If issues persist, consult a professional mechanic or use advanced diagnostic tools to pinpoint the root cause.

Maintenance Tips to Prolong Crank Sensor Life

To ensure the longevity of the crankshaft position sensor and overall engine health, follow these maintenance tips:

1. Keep the Engine Clean: Oil leaks or debris near the sensor can cause premature failure. Regularly inspect and clean the engine bay.
2. Check Wiring Regularly: Inspect the sensor’s wiring harness for wear, fraying, or exposure to heat, which can degrade the insulation.
3. Address Engine Issues Promptly: Misfires, overheating, or other engine problems can stress the crank sensor. Diagnose and repair issues early.
4. Use Quality Parts: When replacing the sensor or related components, opt for OEM or reputable aftermarket brands to ensure reliability.
5. Monitor Diagnostic Codes: Regularly scan the vehicle for trouble codes, even if no symptoms are present, to catch potential issues early.

Crank Sensor Specifications for the 1998 Chevy 4.3

For reference, here are the typical specifications for the crankshaft position sensor in a 1998 Chevy 4.3L V6 Vortec engine:

• Part Number: Common OEM part numbers include GM 10456042 or ACDelco 213-354.
• Type: Hall-effect or magnetic sensor, depending on the specific engine configuration.
• Resistance: Approximately 500–1000 ohms (check manufacturer specifications).
• Voltage: Requires a 5-volt reference signal from the ECM.
• Connector: Single or dual-pin electrical connector.
• Mounting: Secured with one or two bolts (typically 10mm or 13mm).

Always verify the part number with your vehicle’s VIN or a trusted parts supplier to ensure compatibility.

Compatibility Across Chevy Models

The 4.3L V6 engine was used in several 1998 Chevrolet and GMC models, including:

• Chevrolet S10
• Chevrolet Blazer
• Chevrolet Silverado 1500
• Chevrolet Astro
• GMC Sonoma
• GMC Jimmy
• GMC Safari

The crank sensor location and specifications are generally consistent across these models, but slight variations may exist due to differences in engine bay layout or transmission type (manual vs. automatic). Always consult the vehicle’s service manual or a professional for model-specific details.

Cost Considerations for Crank Sensor Replacement

The cost of replacing a crankshaft position sensor in a 1998 Chevy 4.3 depends on whether you perform the repair yourself or hire a professional.

• DIY Cost:
  • Replacement Sensor: $20–$60 (aftermarket) or $50–$100 (OEM)
  • Tools (if not already owned): $50–$150 for a basic socket set, multimeter, or OBD-II scanner
  • Total: $20–$250, depending on tools and part quality
• Professional Repair Cost:
  • Parts: $50–$100
  • Labor: $100–$200 (1–2 hours at $80–$120/hour)
  • Total: $150–$300

Prices may vary based on location, shop rates, and part availability. Shopping around for quotes or sourcing parts from reputable suppliers can help reduce costs.

Conclusion

The crankshaft position sensor is a vital component of the 1998 Chevy 4.3L V6 engine, playing a critical role in engine timing, performance, and reliability. Located on the passenger side of the engine block near the transmission bell housing, the crank sensor can be challenging to access but is manageable with the right tools and knowledge. Recognizing the symptoms of a failing sensor, such as misfires, stalling, or a no-start condition, allows for timely diagnosis and repair. By following the outlined replacement procedure and maintenance tips, vehicle owners can restore their Chevy’s performance and prevent future issues.

This comprehensive guide has covered the crank sensor’s function, location, diagnosis, replacement, and maintenance, providing a valuable resource for DIY mechanics and Chevy enthusiasts. Whether you’re troubleshooting a rough-running engine or performing routine maintenance, understanding the crank sensor’s role empowers you to keep your 1998 Chevy 4.3 running smoothly for years to come.
